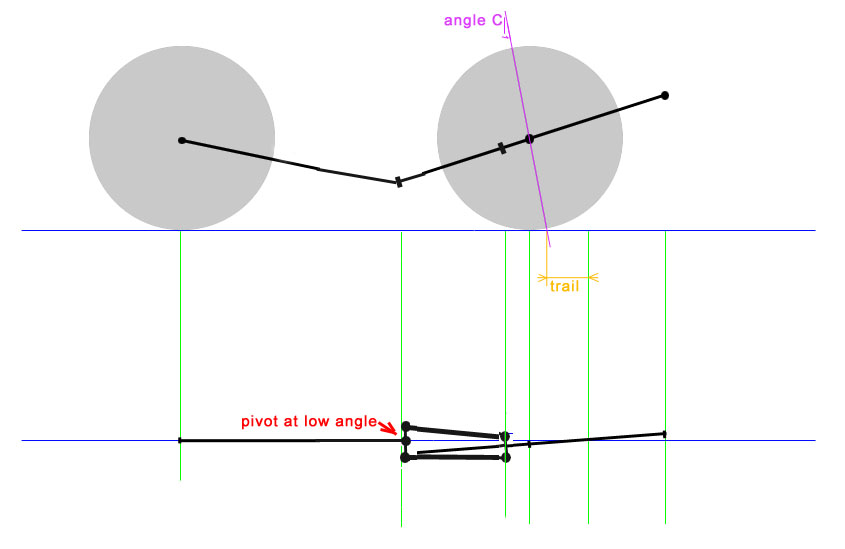

Python positive trail 2 new version

sketch 2
solving some problems of the first, it straightens out as you brake the backwheel.
but dont brake the front wheel ?
(because frontwheel moves back a bit when you steer, but with enough pos. trail i am not so worried)

from prev. sketch
the arms moved to the front.

here is some calculator for these mechanisms
Four-Bar Linkage Position


2006-05-03


.
